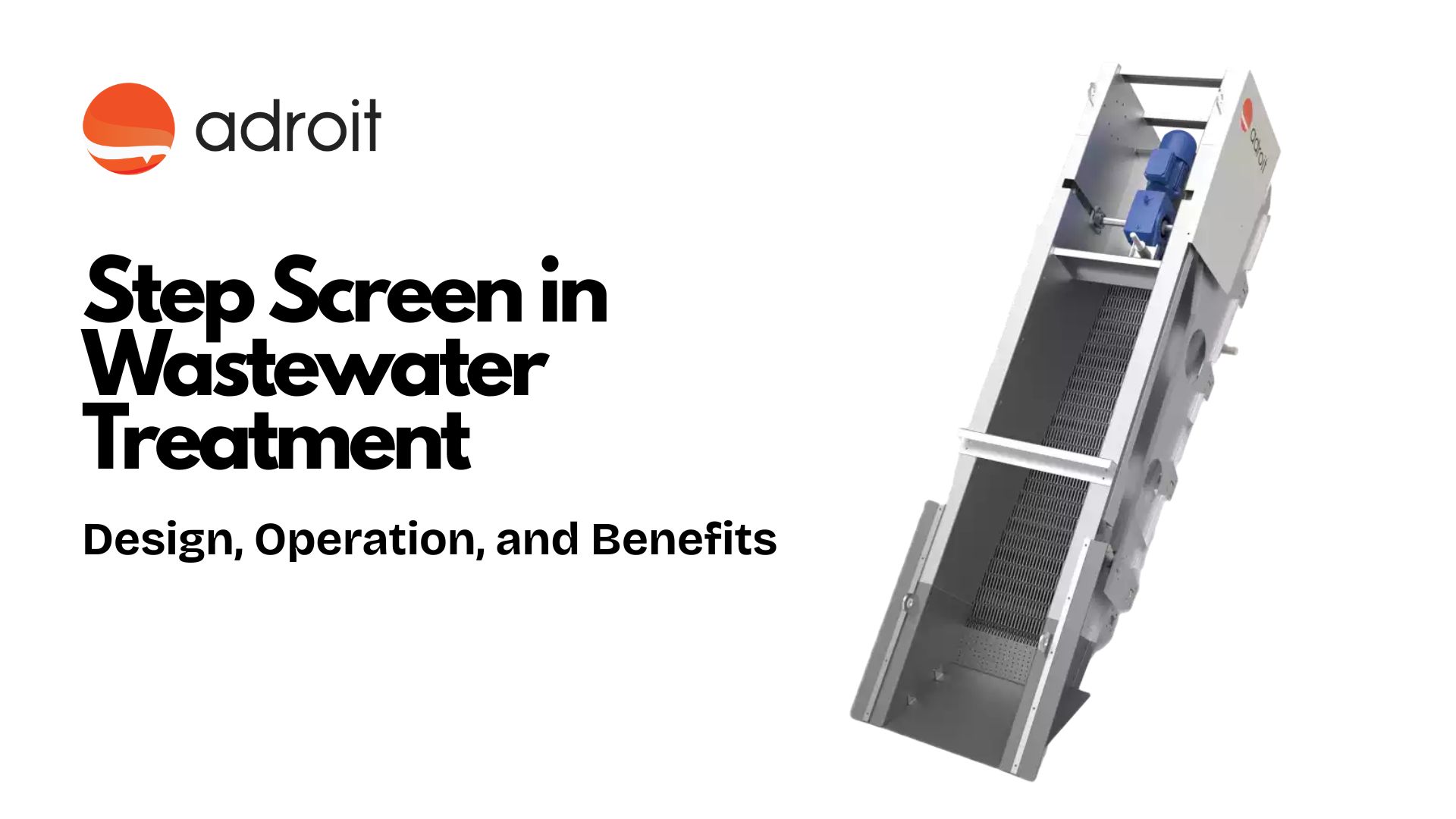

Step Screen in Wastewater Treatment: Design, Operation, and Benefits – In modern wastewater treatment plants, step screens are a crucial component that helps to filter out solids and debris before water moves to the secondary and tertiary stages. It is important to understand the step screen in wastewater treatment, whether you are managing an industrial effluent treatment plant or a municipal facility. Here, Adroit is going to provide you with everything you need to know about the Step Screen in Wastewater Treatment, its Design, Operation, and Benefits. Stay tuned to know more details.
What Is a Step Screen?
A Step Screen is used in wastewater treatment and is a type of fine screen system that effectively removes solids and debris from the water. A step screen works by passing wastewater through a filtration area composed of mobile and fixed plates arranged in a stepped configuration, designed to effectively capture fine solids, such as floating substances, inorganic particles, and non-biodegradable materials, thereby minimizing energy consumption.
Design and Engineering of Step Screens
To remove solids from wastewater, a step screen utilizes fixed and movable plates. The design of a step screen typically includes two sets of lamellae (one fixed and one movable) with small spaces between them. Here is the design and engineering of step screens:
Design Features:
- Alternating Lamellae: It is a step installation of fixed and movable lamellae (plates).
- Slot Widths: Narrow slot widths (for example, 3 mm and 6 mm) for adequate solid separation.
- Angle of Installation: The screen is installed at an angle (for example, 50 degrees to 75 degrees) for better flow to evacuate solids.
- Self-Cleaning: The upward motion of the movable lamellae allows for solids to lift with a self-cleaning functionality.
- Drive System: The drives used to power the movement of the movable lamellae are typically motorized linkage drive systems.
Engineering Factors:
- Flow Rate: When designing the step screen, both average and peak flow rates must be considered.
- Solids Loading: The design takes into consideration the solids content and properties of the influent wastewater.
- Hydraulic headloss: The design will limit headloss to ensure the desired flow rate can be maintained through the screen.
- Screen Grid Velocity: It is also important to consider the hydraulic velocity of the wastewater through the screen openings.
- Construction Material: Stainless steel is sort of a common material because of its durability and properties for resisting corrosion.
How Step Screens Work: Operation and Functionality
It works by using fixed and movable lamellae in a stepped configuration, and wastewater flows through the screen, with solids collecting on the steps. In a stepwise motion, the movable lamellae lift the screen upward as the solids build up, moving them into a discharge chute, and with the self-cleaning mechanism, there is no need for additional cleaning systems.
1. Wastewater Inflow: Wastewater is directed into the screen, where solids will adhere to the lamellae.
2. Solid Accumulation: Eventually, the solids that are retained will form a “carpet” on the screen, which adds filtering functionality.
3. Water Elevation Monitoring: The difference in elevation of the water upstream versus downstream is monitored. When it reaches a predetermined difference, the cleaning cycle will start.
4. Self-Cleaning Cycle: During the cleaning cycle, the movable lamellae lift the screenings onto the next consecutive higher step and continue to lift the screenings to the discharge point.
5. Continuous Operation: The self-cleaning function enables the screen to remain fully operational without anyone taking manual control of the ladders.
Uses of Step Screens in Wastewater Treatment Plants
There are several uses of step screens in wastewater treatment plants, some of which include the following:
- Fine Screening
- In-Channel Installation
- Self-Cleaning Mechanism
- High Throughput Capacity
Benefits of Using Step Screens in Wastewater Treatment
There are several key benefits of using step screens in wastewater treatment, some of which include the following:
- High screening efficacy: Because of their unique step design, the screens can remove solids from wastewater and capture small particles that other screens would miss.
- Suitable for fine and medium-sized screenings: Step screens can manage multiple sizes of particles, which makes them ideal for many applications in wastewater treatment.
- Reduced maintenance and running costs: The effective design of step screens generally means they will require less maintenance and expend less operating energy than a number of other screening systems.
- Tough in the tough conditions: Step screens are made out of materials that can withstand corrosive chemicals and abrasive particles, both of which are prevalent in tough conditions at many wastewater treatment facilities.
- Safeguards pumps and downstream processes: Step screens help prevent clogging and damage to pumps, clarifiers, and other downstream processes by removing solids from wastewater before it reaches other processes.
- Environmentally friendly: Step screens can increase the environmental sustainability of wastewater treatment by reducing the need for additional treatment steps to eliminate small particles.
Why Choose Adroit for Step Screens?
There are several reasons for choosing Adroit for step screens; some of them include the following:
- Experience with water and wastewater treatment technology
- Custom design and fabrication
- Quality and corrosion resistance
- Ongoing technical and maintenance support
- Meeting environmental standards
Maintenance and After-Sales Support
Step screens require low maintenance, but Adroit provides maintenance and after-sales support, including:
- Scheduled maintenance
- Supply of spare parts
- Remote monitoring
- On-site troubleshooting and technician site visits
- Longer warranties and service agreements
Contact Adroit for Step Screen Solutions
If you want to know more details about the Step Screen in wastewater treatment, feel free to contact us through the given contact details:
Office Address: 01/101 Satguru Prime -11 Scheme – 140 Main Road, opposite Vaishnav Dham Mandir, Indore, Madhya Pradesh 452016
Email: [email protected]
Phone: +91 70248-48383
Frequently Asked Questions About Step Screen in Wastewater Treatment: Design, Operation, and Benefits
Question 1. How do step screens remove solids?
Answer. A step screen uses a combination of a moving and a gravity mechanism to grab and remove solids or debris as the wastewater flows through the channel. The debris and solids are lifted to a higher level where they can be discharged with the help of a moving mechanism.
Question 2. How is the flow through the step screen maintained?
Answer. The flow through the step screen is generally maintained by the design of the screen and the geometry of the channel, ensuring sufficient velocity to promote solids removal and prevent clogging. The moving mechanism is also designed to minimize the flow of distribution.
Question 3. What are the main benefits of using step screens?
Answer. There are several benefits offered by step screens; some of them include protection of downstream equipment, efficient solid removal, reduced maintenance needs, and cost-effectiveness.
Question 4. What are the common types of step screens?
Answer. Some common types of step screens include step screens with rotating drums, moving scrapers, or static wedge wire screens.
