J-Type Manual Screen

Lift-out coarse screen for large debris in deep channels and sumps. Raised by hoist, emptied and lowered back, with no one entering the channel.

Screening for large waste and debris

Adroit’s J-Type Manual Screen catches large waste such as logs, rags, branches and other bulky debris before it reaches mechanical screens and pumps. Large objects like these can bend the rakes of a mechanical screen or pull its chain off the sprockets. A J-Type screen installed upstream takes that risk away.
It is especially useful in deep channels and pumping station sumps, where cleaning a fixed screen by hand is difficult or dangerous. The whole screen is lifted out by a hoist, emptied at ground level and lowered back.

Where a J-Type screen is used

Application

A J-Type screen is a coarse protection screen. It is placed at the entry to a wet well, sump or deep inlet channel to stop the largest debris. Its wide bar spacing lets the flow through freely while holding back the objects that would damage pumps or mechanical screens.

How the J-Type screen works

Operation

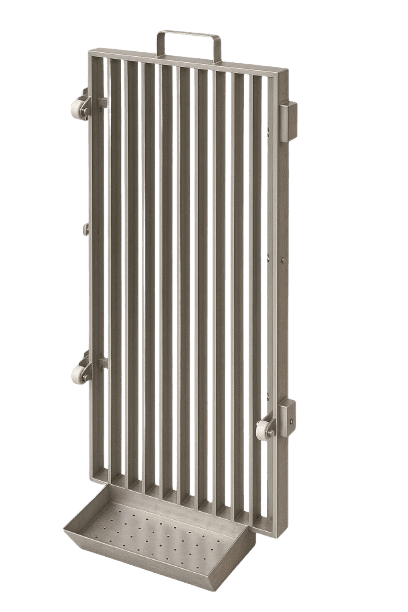

The screen is a frame of vertical bars with a perforated tray at the bottom, which gives it its J shape when seen from the side. It slides down into guide channels fixed to the walls, with rollers to keep it running smoothly.

Water flows through the bars. Debris is held against the bars and settles into the bottom tray. When the screen needs cleaning, it is lifted out of the guides by a manual or electric hoist, emptied at the top and lowered back into place. The tray keeps the debris from dropping back into the channel as the screen comes up.

Where J-Type screens are installed

Application areas

Sewage treatment plants

Coarse protection ahead of mechanical screens.

Sewage pumping stations

Protects pumps in wet wells and sumps from bulky debris.

Intake pumping stations

Stops logs, branches and large floating material at raw water intakes.

Storm water drains

Coarse screening under storm flows.

Industrial treatment plants, ETPs and CETPs

First-stage protection where large debris may arrive.

Why choose Adroit's J-Type screen

Features & advantages

Removes the largest debris

Catches logs, rags and bulky objects, with less downtime and maintenance for the equipment behind it.

Safe cleaning in deep channels

The screen comes to the operator, not the other way round.

Stainless steel construction

SS 304 or SS 316 for durability and corrosion resistance.

Made to your channel

Bar spacing, width and depth made to suit flow conditions and site.

Low cost, proven design

Operated by a manual or electric hoist; no drives or controls on the screen itself.

J-Type screen dimensions and construction

Dimensions & manufacturing

Bar spacing 50 mm to 100 mm

Bar spacing

500 mm to 3000 mm

Channel width

1000 mm to 20,000 mm

Channel depth

Stainless Steel 304 / 316

Material of construction

Manual or electric hoist

Lifting
