Adroit offers a complete line of uni-directional and bi-directional knife gate valves. In addition, we provide a wide range of other industrial valves, gate globe, check, ball valves, and butterfly valves.
• Knife Gate Valves
• Uni-directional Knife Gate Valves
• Bi-directional Knife Gate Valves
• Other Industrial Valves
• Gate, Globe, Check Valves
• Ball Valves

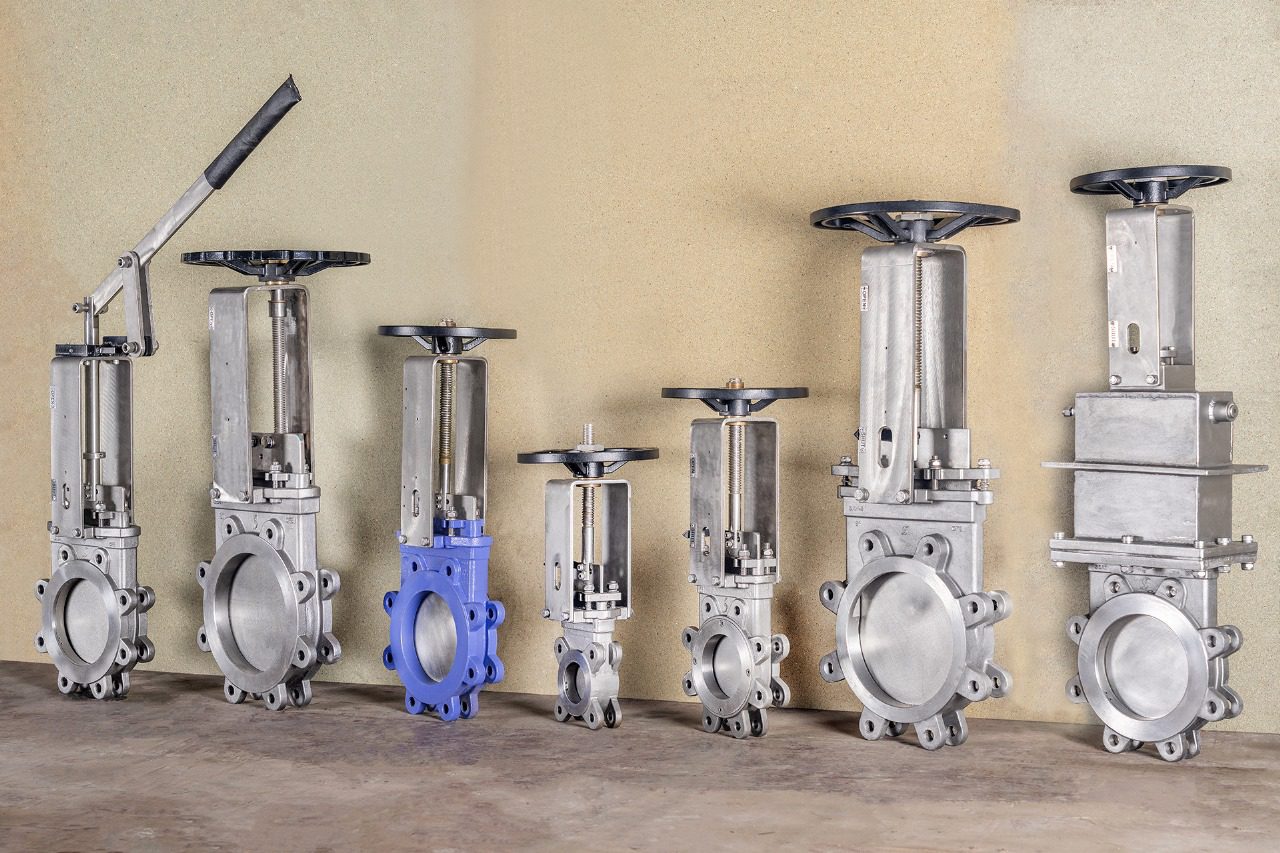

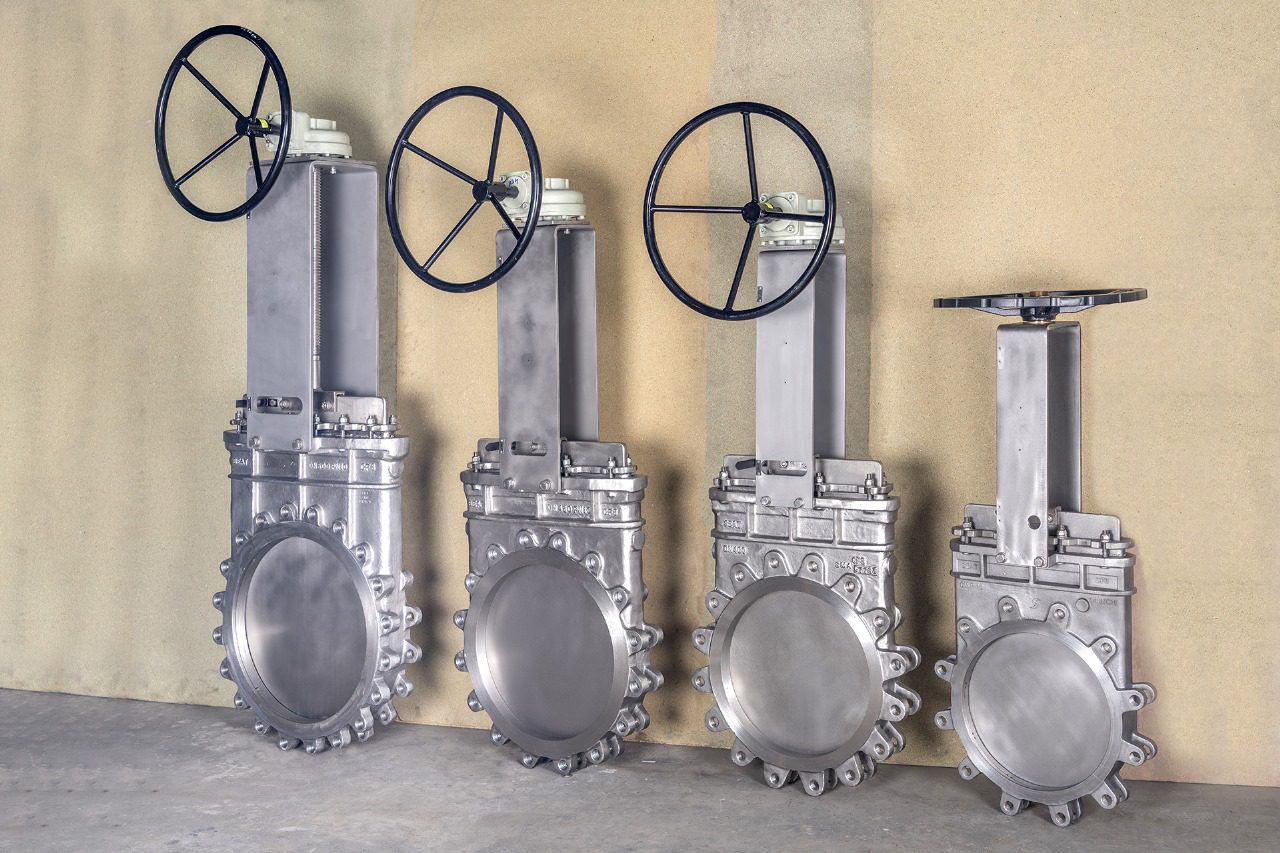

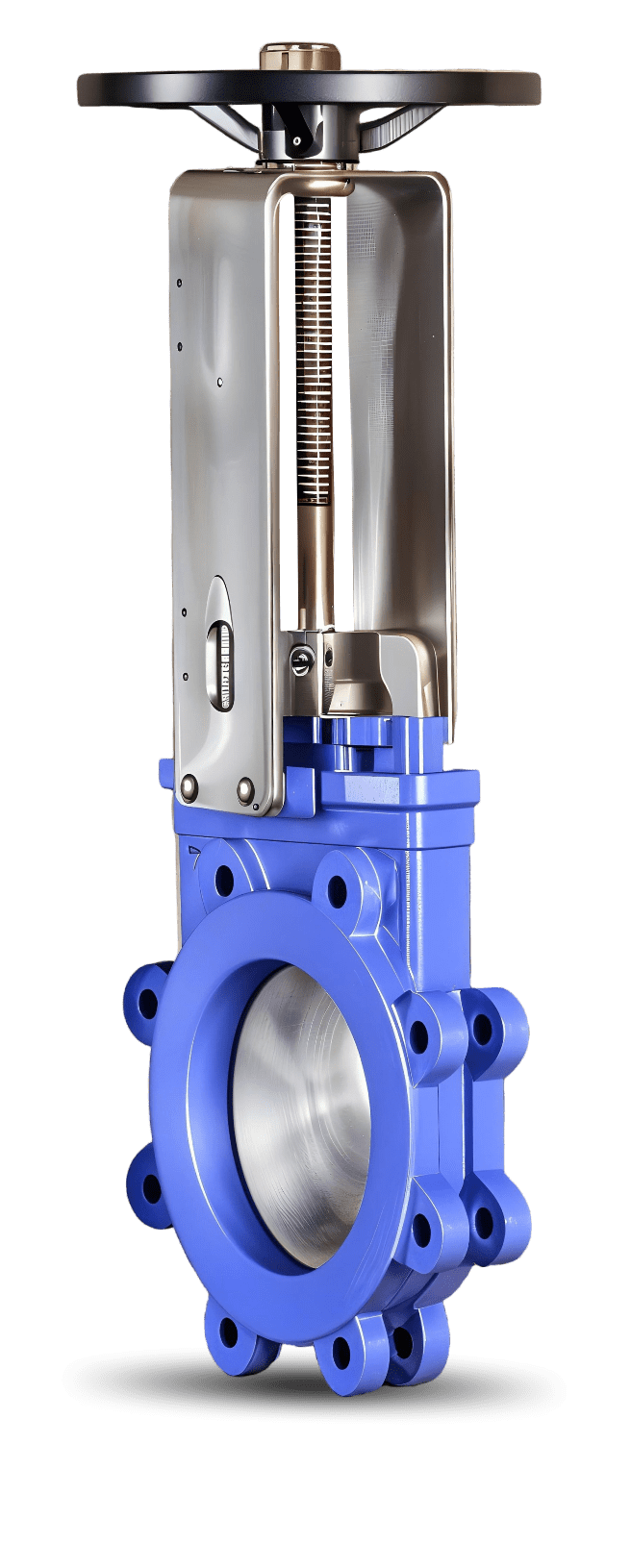

Knife Gate Valves are bonnetless, full lug design valves, manufactured in compliance with the MSS SP-81 standard for industrial service applications. These valves are primarily used in industries such as power generation, cement production, paper and pulp, chemicals, water treatment and other process industries for handling solids, liquids, and liquid-solid mixtures. They are available with either metal or soft seats or bidirectional seating depending on the application and can be installed in vertical, horizontal or inclined positions.
Technical Data:
Nominal Size | DN50 to DN600, higher size on request |
End Style | Full Lugged up to DN600 |
Flange Drilling | Suitable for ANSI B16.5 150lb / DIN PN 10 (Others on request) |
Pressure Rating | 10 bar up to DN600 |
Testing | As per MSS SP-81 / As agreed mutually with the client |
Various Modes of Operations:
Hand wheel (Rising & Non-rising Stem) | Chain wheel |
Electric | Pneumatic (with manual override arrangement) |
Bevel Gear Hydraulic | Hydraulic |
Pneumatic Lever | Lever |
Over time, the role of knife gate valves has expanded far beyond simple isolation. They have become essential in handling even the most challenging industrial media. Their high durability in harsh operating environments, especially when handling fluids with a high concentration of solid particles, is the main reason for their wide usage in different modern process industries. In contrast to the usual valves, these structures are capable of dealing with abrasive slurry, fibrous materials, and semi-solid mixtures without any drop in performance.
One key feature of knife gate valves is their ability to provide a completely free flow when they are fully open. This not only reduces the pressure drop but also enhances the overall efficiency of the system. For this reason, they find application in many industries that require an uninterrupted flow of materials, such as wastewater treatment, mining, and pulp processing. Furthermore, their sharp-edged gate helps them to penetrate through very thick media, making it possible to achieve a perfect shut-off even under very harsh conditions.
Boosting Performance
Modern factories and plants are looking for equipment that could potentially lead to less downtime as well as reduce maintenance costs. In that regard, knife gate valves are designed to be simple. They have fewer internal parts, which makes maintenance easier and extends service life, particularly in those cases where the systems come into contact with abrasive or corrosive substances. Besides that, many valve models have features such as self-cleaning ability, which is very effective in preventing the accumulation of materials, and this also leads to steady performance over the long term.
Another key advantage is their adaptability. These valves can be integrated with different kinds of actuating systems, including manual, electric, or pneumatic controls, thus facilitating the easy automation of industrial processes. Such flexibility enables industries to run their operations efficiently while at the same time having precise control over flow isolation.
Applications Across Various Industries
Knife gate valves are very popular in industries that come across problematic flow conditions. For example, they are used in sludge processing in wastewater treatment plants and handling bulk materials in cement and chemical industries; their versatility is second to none. Due to their ability to function well in both liquid and solid-laden media, they are typically the first choice for applications where conventional valves are simply unable to perform.
Valve Solutions for Future Needs
As the focus on efficiency and sustainability continues to grow, different industries tend to rely on equipment that is not only energy-efficient but also highly dependable. In fact, knife gate valves play a major part in accomplishing this target by minimizing leakage, lowering the amount of energy required, and ensuring precise flow control. In light of industrial processes becoming more complex, these valves are being developed using superior materials and cutting-edge sealing technologies to be able to fulfill future needs.
They are mainly used to control the flow of sludge, viscous fluids, and substances containing solid particles in industrial environments.
Common industries include wastewater treatment, mining, pulp and paper, cement, and chemicals.
They are generally designed for low to medium-pressure applications.
Yes, they can be operated manually or through electric, pneumatic, or hydraulic actuators.
Their simple design reduces blockages and wear, resulting in a longer lifespan.
