Types of Wastewater Mechanical Screens: Ensuring Clean Water Systems
Water scarcity and pollution are the two challenges of our time, and effective wastewater treatment is essential. Wastewater treatment is an important component in maintaining public health and environmental sustainability. With the advancement in the present time, cities grow and industries expand, the volume of the wastewater also increases which leads to greater pressure on treatment facilities to manage and purify this water effectively.
Before any complex process for purifying water, the raw sewage must undergo a crucial step, screening. It is a mechanical barrier that removes large solids like rags, plastics, and debris. Mechanical screens play an important role in the wastewater treatment process. These screens are especially designed to filter out solids and debris from wastewater before it enters the treatment process. These screens can ensure the system runs efficiently and meets the environmental regulations. Here, we will discuss the types of wastewater mechanical screens and their functions.
Mechanical Screens: First Step for Wastewater Treatment
Wastewater mechanical screens are essential devices that are used to remove large solid particles from wastewater. These screens are the primary step in the treatment process for preventing debris from damaging more sensitive equipment downstream, including pumps, centrifuges, and treatment tanks. Mechanical screens can reduce the load on primary treatment processes by removing larger solids and resulting in improved efficiency and reduced operational costs.
The design and functionality of mechanical screens can vary depending on the factors, including size of the size to be filtered and the flow rate of the wastewater.

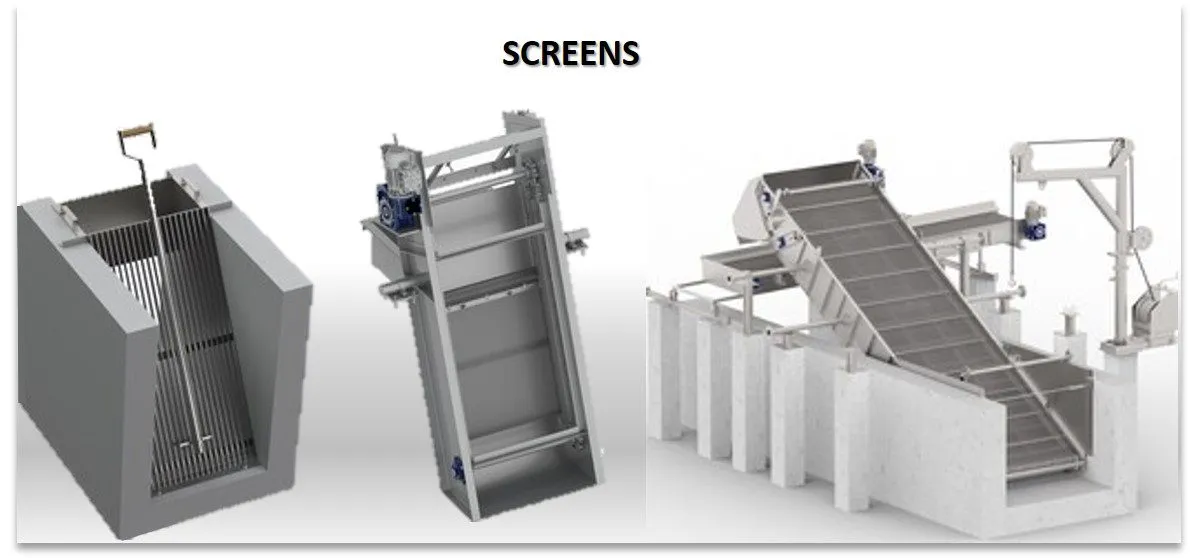

Different Types of WasteWater Mechanical Screens:
1. Mechanical Multi-rake Screen
The Multi-rake Mechanical Bar Screen is a machine for the automatic interception and removal of solids from liquid. It is designed in such a way that it can clean waste, wet wipes, plastic bags, etc, from channel /wall-mounted installation in open channels & tanks. It includes a series of rake bars attached to a rotating chain. When water is passing, the rake bars lift and carry the waste to an outlet top along its upper edge. It is intended for screening the flow entering treatment works, pumping stations, etc., stormwater outfalls or industrial sites.
2. Mechanical Step Screen
Water flow carries with it the solid screenings to the step screen. The solid screenings are accumulated on the screen, and together they constitute a pile over time. The carpet provides a further water filtering action and assists in the filtering of smaller particles. The cycle is initiated to clean the screen automatically when the difference in levels between the upper and lower reaches reaches the set value. In operation, steps ascend, and the mobile lamella raises screenings to the next step until they reach the discharge location.
Step screens are a type of mechanical screen that uses a series of step-shaped bars to filter out solids. Larger particles, while passing over the steps, are trapped on this surface, whereas smaller ones can flow through.
Functionality:
- Step filtration: The water is forced through the steps to filter out smaller particles of debris.
- Self-Cleaning: The automatic clean feature is integrated into the design of most step screens to lift collected solids.
Advantages:
- Very efficient in the treatment of solid particles of all sizes.
- Suitable for high flow rate applications.
- It’s also easier to care for than simple bar or mesh screens.
Disadvantages:
- Difficult design can result in increased installation expense.
- It may not work with all kinds of wastewater, especially if the particles are very small.
3. Bar Screens
Bar Screens are the basic and most used type of mechanical screen, which consists of parallel bars spaced at a fixed distance that are between 6mm and 10mm apart. The distance between the bars depends on the size of solids that need to be removed. Manual bar screen and automatic bar screen are used for wastewater treatment.
Functionality of Bar Screens:
- The main focus of bar screens is to remove large objects effectively, including sticks, plastics, and rags.
- Bar screens can be manually cleaned or automatically cleaned, depending on the design, using a rake system that moves debris out of the screen.
Advantages of Bar Screens:
- Simple design and easy to install.
- Reliable and cost-effective for smaller wastewater treatment plants.
Disadvantages of Bar Screens:
- Not suitable for fine screening, as small particles can pass through the bars.
- Regular cleaning may be required if the raking system fails.
4. Mesh Screens
Mesh Screens are similar to bar screens, but in mesh screens, a mesh material with much finer openings is used. These screens are designed to filter out the smaller particles, ranging from 1mm to 6mm in size, making these screens a suitable choice for plants that deal with finer solids. In the pre-treatment stage, mesh screens can remove finer debris before the water moves on. These screens are the ideal choice for handling larger volumes of wastewater without clogging due to their high-flow capacity.
Advantages of Mesh Screens:
- Ideal for finer filtration compared to bar screens.
- It can be self-cleaning with rotating drum systems or other automated cleaning mechanisms.
Disadvantages of Mesh Screens:
- It can be prone to clogging when dealing with high solid loads.
- Requires more maintenance and monitoring than bar screens.
5. Rotary Drum Screens
A cylindrical screen that rotates to filter solids from wastewater is a rotary drum screen. The drum is covered with a mesh material, and the wastewater flows through the drum, with the solids caught on the surface. Rotary drum systems are used for high-flow applications and filter particles down to around 1mm or smaller. These screens offer continuous filtration with minimal maintenance. The rotating drum ensures that solids are scarped off properly and reduces the need for manual cleaning.
Advantages of Rotary Drum Screens:
- These types of screens are efficient and reliable for continuous wastewater filtration.
- Can handle a range of wastewater flows and solid types.
- Such screens are less prone to clogging as it has rotation and a self-cleaning mechanism.
Disadvantages:
- Needs higher initial investment costs in comparison to bar and mesh screens.
- Installation and maintenance procedures are complex.
Adroit Water Technologies: Your Ideal Wastewater Treatment Partner
Choosing the right mechanical screen for wastewater treatment is critical to the success of your water treatment project. A company like Adroit Water Technologies can be invaluable in selecting and supplying the ideal mechanical screen for your situation. Adroit provides innovative water treatment solutions that fit the specific needs of your facility.
Adroit Water Technologies has over ten years of experience in the water treatment industry, developing high-performance mechanical screens for different wastewater setups. From a bar screen for small-sized facilities to a rotary drum screen for larger, industrial applications, Adroit has the products and expertise to improve your wastewater treatment process. Adroit provides a full suite of services from consultation and installation to maintenance and ongoing support to help your water treatment system run at maximum efficiency.
Reasons to select Adroit Water Technologies:
Tailored Solutions: Adroit offers custom-designed mechanical screens to fit your facility’s specific wastewater needs.
Cutting-edge Technology: Adroit Water Technologies employs the latest technology to optimize filtration efficiency and minimize operating expenses.
Comprehensive service: Adroit Water Technologies supports your screen from installation to ongoing maintenance to ensure your system continues to operate like new.
Expert Guidance: The Adroit Water Technologies team consists of experienced water filtration professionals who support customers in identifying the right mechanical screen for their facility.
Frequently Asked Questions for WasteWater Mechanical Screens:
Question 1. What are the principal types of screening mechanisms for CSO screens?
Answer. Some common types are bar, mesh, rotary drum, traveling bridge, and fine screens. Each is suited for a particular type of debris and throughput.
Question 2. How does an internally-fed rotary drum screen work?
Answer. A rotary drum screen is a cylindrical screen rotating in an axial (longitudinal) direction that separates liquid from the waste material as it flows out of the rotational flow and up to the rotation axes. It is frequently applied for high flow and continuous filtration.
Question 3. Why are fine screens used in wastewater treatment?
Answer. Fine screens can efficiently screen small particulate matter (1–3 mm) and are used not infrequently as second- or third-step screens (i.e., the fine screen takes the place of another type in some instances). They work really great but you need to keep them clean from getting clogged.
Question 4. What is a traveling bridge screen?
Answer. Travelling bridge screens are installed on a travelling bridge that spans across the water body to remove debris using either a rake or conveyor. These are for high high-capacity system, which deals with more wastewater.
